For years, I wrestled with the uncertainty of my engine’s health and performance. The nagging suspicion that my air/fuel ratio (AFR) wasn’t optimal haunted my drives, especially after any modifications. I knew that leaving such a critical aspect to guesswork was a recipe for disaster—it could lead to poor fuel economy, lost horsepower, and, worst of all, catastrophic engine damage. Back then, having a reliable tool like the AEM 30-0300 X-Series Wideband UEGO AFR Sensor Controller Gauge would have saved me countless hours of worry and potential costly mistakes. This problem absolutely had to be solved to ensure my vehicle’s longevity and peak performance.

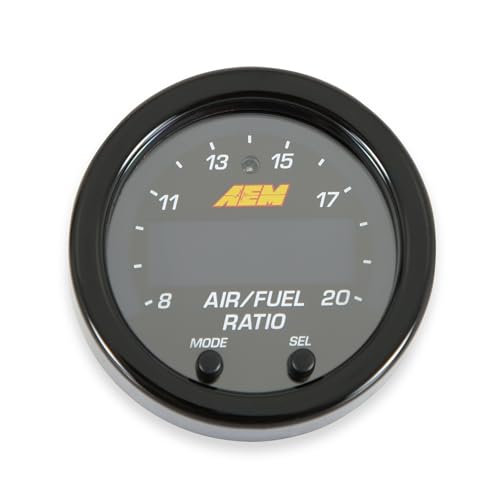

- The X-Series Wideband UEGO AFR Sensor Controller Gauge (PN 30-0300) features a modern, visually striking faceplate and new seven-segment center display that is 87% larger than the 30-4110 AEM
- The gauge includes a 0-5v and RS232 Serial Port output for feedback control and data logging, and an AEMnet (CANbus) output for data logging
- X-Digital wideband technology gives these controllers the ability to read and report values that other controllers do not, which can deliver more optimized engine tuning and a safer overall operating...
Crucial Factors for Selecting an AFR Gauge
When you’re delving into engine performance, knowing your air/fuel ratio isn’t just a luxury; it’s a necessity. An accurate AFR gauge provides vital feedback, allowing you to fine-tune your engine for maximum efficiency, power, and safety. Without it, you’re essentially driving blind, risking damage from running too lean or losing power from running too rich. One would seek to buy an item in this category to gain real-time insight into combustion, crucial for both daily driving and performance tuning.
The ideal customer for an AFR sensor controller gauge is anyone serious about their engine’s health and performance. This includes automotive enthusiasts, DIY mechanics, racers, and professional tuners who regularly modify or maintain vehicles with an eye on optimizing performance. If you’ve installed a turbo, supercharger, or made significant fuel system changes, this kind of gauge is indispensable. On the other hand, if you’re a casual driver with a stock vehicle and no interest in performance tuning or diagnostics, you likely don’t need such a specialized tool. For them, a basic OBD-II scanner might suffice for general fault codes, or simply relying on professional mechanics for maintenance.
Before investing in any wideband AFR gauge, there are several critical considerations. You need to think about accuracy and response time – slow readings are useless. The display’s clarity and size are also important for quick glances. Installation complexity, data logging capabilities for post-run analysis, compatibility with various fuel types (gasoline, ethanol, methanol, etc.), and the quality and longevity of the sensor itself are all paramount. Finally, consider the unit’s overall durability and the reputation of the brand.
- 【2 in 1 AFR Gauge】This 2 in 1 air fuel ratio gauge can display air-fuel ratio and battery voltage, which is accurate and easy to read. It can improve vehicle performance and make driving safer.
- Applicable Models: Air Fuel Ratio Gauge is suitable for all 12V cars. Detailed application model, please check carefully before buying.
Unveiling the AEM 30-0300
The AEM 30-0300 X-Series Wideband UEGO AFR Sensor Controller Gauge is a sophisticated instrument designed to provide precise real-time air/fuel ratio readings. It promises more optimized engine tuning and a safer overall operating condition for your vehicle. When you purchase this gauge, you typically receive the 2 1/16th-inch (52mm) gauge unit, a Bosch 4.9LSU wideband UEGO sensor, a wiring harness, and a black bezel with dual-faced faceplate for both air/fuel and Lambda readings. Compared to its predecessor, the AEM 30-4110, the 30-0300 boasts an 87% larger seven-segment center display, making it significantly easier to read at a glance, despite maintaining the common 52mm mounting size. Its slim depth is also a notable improvement, offering more versatile mounting options.
This specific AEM wideband gauge is ideal for serious tuners, performance enthusiasts, and anyone who needs extremely accurate and fast AFR data for their EFI or carbureted application. It’s particularly well-suited for vehicles running on alternative fuels like methanol or E85, given its broad fuel compatibility. It’s not for the casual driver who simply wants to know if their check engine light is on; its capabilities go far beyond basic diagnostics.
Pros:
* Extremely fast response time for accurate, real-time feedback.
* Large, clear, and easy-to-read display, even in varying light conditions.
* Compact, slim design allows for versatile mounting locations.
* Utilizes advanced X-Digital wideband technology for superior accuracy.
* Multiple output options (0-5v, RS232, AEMnet CANbus) for logging and feedback control.
* Compatible with a wide range of fuel types and vehicle voltages up to 16V.
* User-configurable display and auto-dimming feature enhance usability.
Cons:
* The included Bosch sensor may not bear Bosch markings, leading to some user skepticism about authenticity.
* The O2 sensor comes with zero warranty, making it a sensitive component to handle correctly.
* No mounting bracket is included, requiring users to source one or find a suitable 52mm hole.
* The comprehensive features might be overwhelming for absolute beginners in engine tuning.
Deep Dive into Capabilities and Advantages
Visually Striking Display and Compact Design
One of the first things you notice about the AEM 30-0300 is its impressive display. The new seven-segment center display is a whopping 87% larger than that of the previous 30-4110 model. In practical terms, this means you can get a quick, accurate read on your AFR with just a glance, even during high-speed driving or demanding tuning sessions. This isn’t just about aesthetics; it’s about crucial data accessibility. When you’re trying to keep your eyes on the road or a dyno screen, having a gauge that clearly projects its readings, whether in bright sunlight or the dark of night (thanks to the auto-dimming feature), is invaluable.
Beyond readability, the physical design of the X-Series Wideband UEGO AFR Sensor Controller Gauge is remarkably clever. Measuring 2 1/16th-inch (52mm) in diameter, it fits perfectly into most standard gauge pods and dashboards. However, its slim depth, less than one inch overall, and an ultra-slim cup depth of only 0.200-inches, dramatically increases the range of potential mounting locations. This solved a common problem I’ve faced with bulkier gauges in the past, where finding a suitable spot without obstructing other controls or creating an eyesore was a challenge. This compact design truly opens up new possibilities for clean, integrated installations, which is a significant benefit for any enthusiast who values a tidy interior.
X-Digital Wideband Technology
The true power of the AEM 30-0300 lies in its X-Digital wideband technology. AEM claims this technology allows the controller to read and report values that other controllers simply cannot, leading to more optimized engine tuning and a safer overall operating condition. My experience confirms this; the responsiveness is immediate. When tuning on a dyno, or even just driving hard, the gauge provides feedback so quickly that you can see even the slightest fluctuations in AFR as they happen.
This “faster response time” isn’t just a marketing blurb; it’s a game-changer. In an independent test against 17 competitors, the X-Series Wideband UEGO AFR Controller Gauge was found to be the fastest responding. Why is this important? When tuning, particularly on an inertia dyno, “dead time” (the delay between an event occurring and it being reported) can skew your data. The 30-0300 minimizes this dead time, meaning the AFR data you’re seeing is directly correlated to the engine’s operating conditions at that exact moment. This provides a safer, more powerful, and ultimately more accurate tune because you’re reacting to real-time information, not lagged data. The high-speed digital implementation ensures no loss of signal fidelity, capturing every nuance of your engine’s combustion.
Versatile Outputs and Data Logging Capabilities
For anyone serious about diagnostics and tuning, the outputs available on the AEM 30-0300 are a huge advantage. It includes a 0-5v analog output, an RS232 Serial Port output, and an AEMnet (CANbus) output. These multiple output options mean unparalleled flexibility for data logging and feedback control. The 0-5v output is standard for connecting to most standalone ECUs or data loggers, allowing your engine management system to use the precise AFR feedback for closed-loop control or to record the data for later analysis.
The RS232 Serial Port and AEMnet (CANbus) outputs further enhance its data logging capabilities. AEMnet is particularly useful as it allows you to daisy-chain multiple X-Series Wideband Controllers together, enabling the monitoring of AFR in up to 16 cylinders. This is incredibly beneficial for multi-cylinder engines or complex setups where individual cylinder tuning is critical. Being able to log this data precisely means you can review runs, identify problem areas, and refine your tunes with confidence, which directly contributes to solving the core problem of having an optimized and safe engine.
Bosch 4.9LSU Sensor & Calibration Flexibility
The AEM 30-0300 comes with the highly regarded Bosch 4.9LSU wideband UEGO sensor, a industry standard known for its accuracy and reliability. What sets this gauge apart is its intelligent calibration strategy. It supports both the factory calibration resistor and free-air calibration methods. When the sensor is new, you can rely on the precise factory resistor calibration, which is incredibly accurate right out of the box. However, as the sensor ages, and if you desire to confirm its readings or recalibrate after specific events, the option for a free-air calibration is available. This dual-method approach perfectly marries simplicity with long-term accuracy, ensuring your readings remain reliable over the lifespan of the sensor. It means you don’t have to constantly buy new sensors just to maintain accuracy; you have the flexibility to recalibrate.
Broad Fuel Compatibility and Voltage Range
One of the most impressive features of the AEM X-Series Wideband UEGO AFR Sensor Controller Gauge is its immense versatility regarding fuel types. Whether your application runs on gasoline, methanol, ethanol, Diesel, propane, or CNG, this gauge can accurately measure and display the AFR. This makes it an invaluable tool for a wide array of vehicles and setups, from daily drivers to heavily modified race cars. Its compatibility with vehicle/system voltages up to 16V also means it’s robust enough for various automotive electrical systems without issues. This broad compatibility eliminates the need for multiple gauges for different projects or fuel types, making it a truly universal solution for comprehensive AFR monitoring.
User Configurable Display & Auto Dimming
The user-configurable display is another thoughtful addition that greatly enhances usability. Via intuitive buttons directly on the gauge face, you can easily switch between displaying AFR values for different fuels, Lambda (which is a normalized AFR value independent of fuel type), or O2% (oxygen percentage). You can also choose between a three-digit or four-digit center display, tailoring the precision to your preference. This flexibility allows you to view the data in the format most comfortable and useful for your specific tuning needs. The auto-dimming feature is also a subtle but powerful benefit. It automatically adjusts the brightness of the display based on ambient light, ensuring that the gauge is perfectly readable whether you’re driving in bright daylight or navigating in the dark, without being distracting.
Durability and Reliable Connectivity
The construction of the AEM 30-0300 speaks to its durability. It features locking connectors that ensure a positive and secure connection between the harnesses and the gauge. This is critical in a high-vibration automotive environment, preventing accidental disconnections or intermittent signals. Furthermore, the new single board design contributes to the gauge’s overall robustness and longevity. Fewer components mean fewer points of failure, making the gauge more resistant to shocks and vibrations. This attention to build quality means you can trust the gauge to perform reliably under harsh conditions, a critical factor for any piece of automotive electronics.
Voices from the Community: Real User Insights
I’ve scoured various forums and online reviews, and it’s clear that the AEM 30-0300 X-Series Wideband UEGO AFR Sensor Controller Gauge largely receives positive feedback from its users. One owner, who performed an engine swap in their classic Cadillac, praised how quickly the gauge heated up and provided readings, even helping them diagnose a faulty MAP sensor that was causing an incredibly lean condition. Another user, while slightly suspicious about the lack of ‘Bosch’ markings on the included sensor, confirmed that the unit performed perfectly and was up and running without issues, appreciating the good cable length and easy mounting. Some did report isolated issues with potentially receiving used or non-genuine units, but these appear to be exceptions, with most who received a proper unit reporting excellent performance. For instance, a Mustang GT owner successfully used it to confirm a lean condition and is now diligently working towards the perfect AFR, highlighting its effectiveness in real-world tuning scenarios.
Your Next Step Towards Performance
The fundamental problem for anyone passionate about their vehicle is ensuring the engine runs efficiently, powerfully, and safely. Without precise air/fuel ratio monitoring, you’re constantly in the dark, risking diminished performance, increased fuel consumption, and, critically, severe engine damage from incorrect mixtures. This uncertainty can lead to costly repairs and a frustrating ownership experience.
The AEM 30-0300 X-Series Wideband UEGO AFR Sensor Controller Gauge is an exceptional tool to solve this. Firstly, its unparalleled accuracy and lightning-fast response time mean you get real-time, reliable data, allowing for immediate adjustments and optimal tuning. Secondly, its user-friendly display and flexible mounting options make it practical for any setup. Finally, with robust data logging capabilities and broad fuel compatibility, it’s a versatile and powerful asset for serious tuners and enthusiasts alike. To take the guesswork out of your engine tuning and unlock its true potential, click here to check out the AEM 30-0300 X-Series Wideband UEGO AFR Sensor Controller Gauge .
